Wall Mount — Column

How to use it

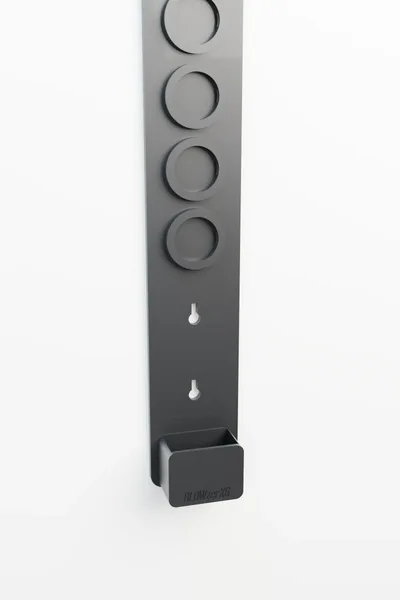

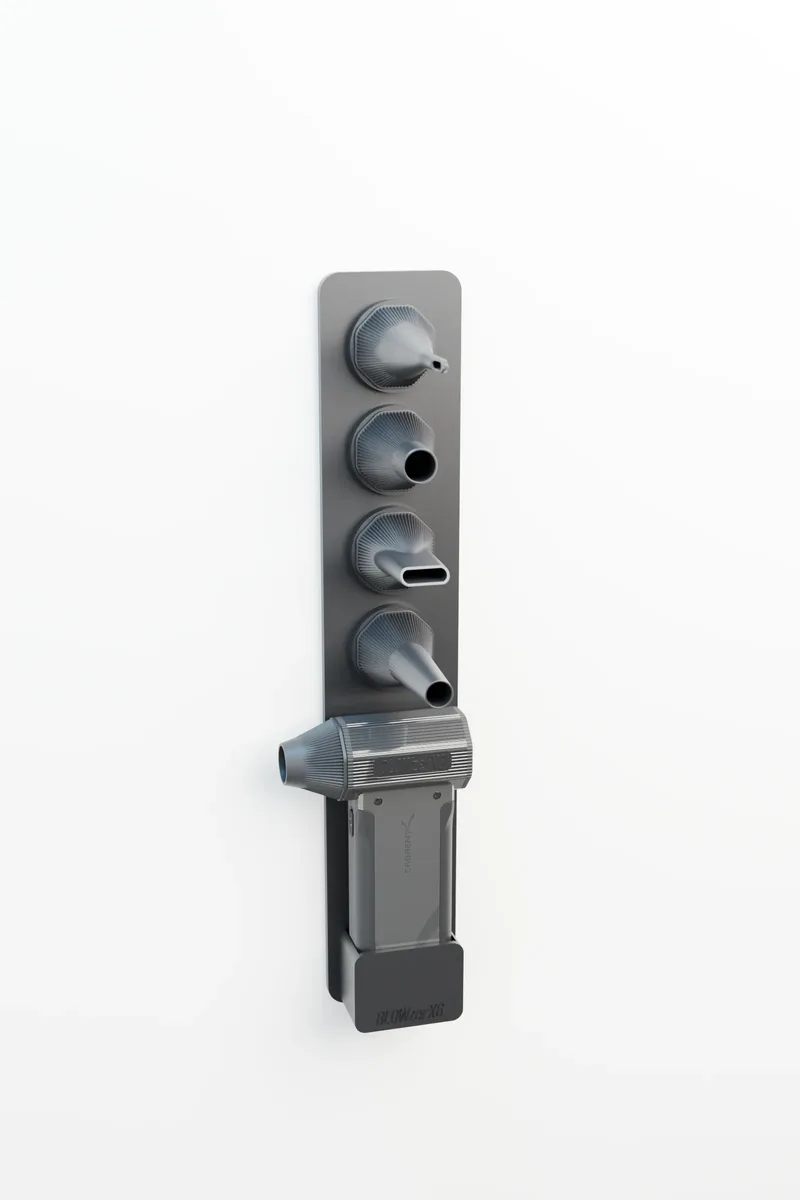

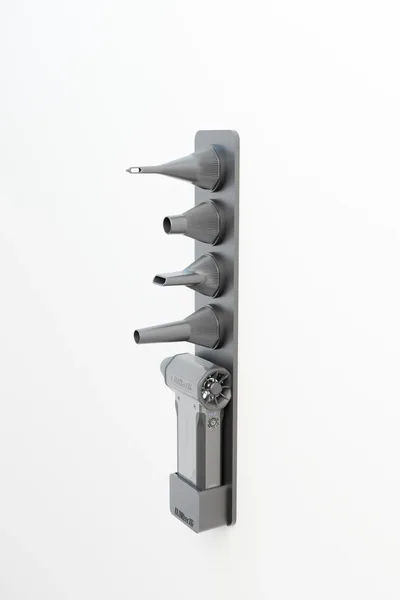

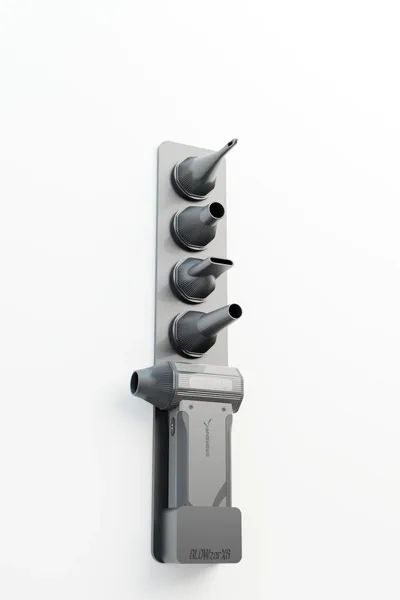

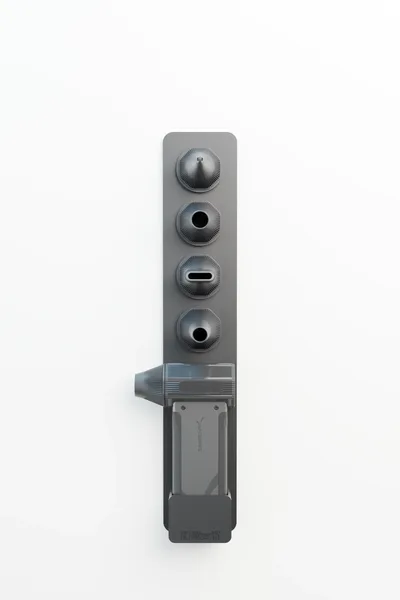

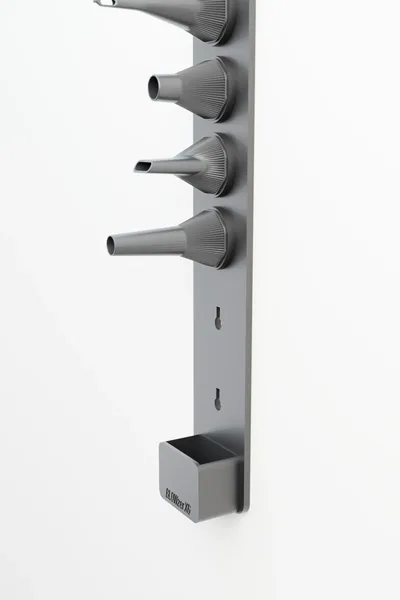

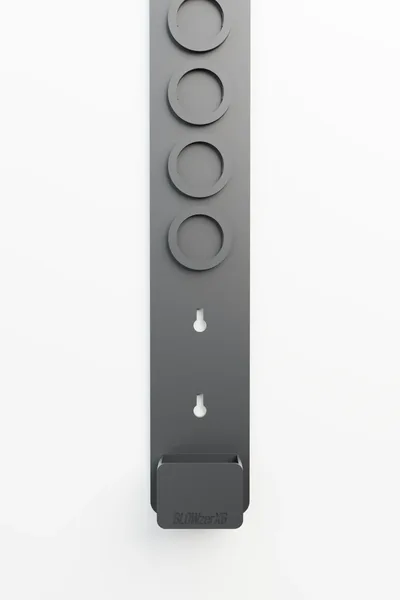

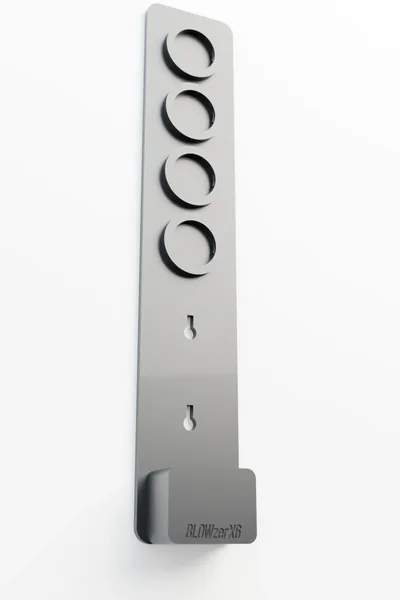

A narrow wall holder for the BLOWZER X6 and its spare nozzles, 70 × 380 mm. The X6 hangs grip-down in a holster at the bottom; the four spare nozzles lock onto bayonet seats stacked above it and point out of the wall (the fifth nozzle stays on the X6). The seats are a copy of the X6's own nozzle mount — a Ø32.8 bore with two lugs: push a nozzle on with its notches over the lugs, twist about a quarter turn clockwise to the stop, locked; twist back to release. Nozzles cannot fall off the wall. Two keyholes (Ø9 head opening below, 4.5 mm slot above) hang the plate on two pan-head screws; the charging cable passes through the slot in the holster floor and hangs straight down, so it charges on the wall. v1, first print round: CAD-verified (holster depth assumes the barrel's flat side against the plate), not yet printed by us.

Print settings

Print orientation

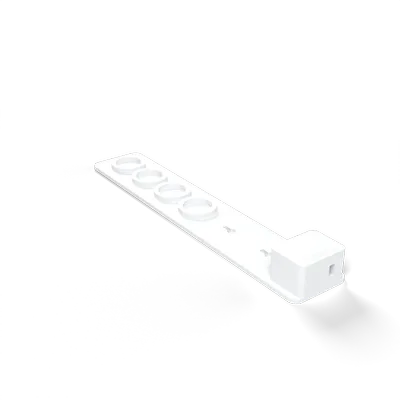

wall face on the bed — the holster and the four seat bosses point up

Material

PLA or PETG (PETG if the wall gets warm)

Supports

none — every bore is vertical

Layer height

0.2 mm

Nozzle

0.4 mm

Walls

3

Infill

20–30 %

Scale

100 % — do not scale, the seats and the holster stop fitting

Extra hardware

2 × pan-head screws #8 / M4 (head ≤ 9 mm, shank ≤ 4.5 mm) + wall anchors

Size (as printed)

70 × 380 × 38.48 mm

Filament

≈ 127 g PLA at 30 % infill

Assembly

Not specified

Notes

The bed must take the 380 mm plate (a 400 mm bed, or the diagonal of a 300 mm bed); the STEP is included to split the plate in your CAD. The plate is 5 mm thick — use a brim if your PLA lifts at the corners. Mounting: two pan-head screws, head ≤ 9 mm, shank ≤ 4.5 mm (#8 / M4 wood screws into wall anchors), heads ~5 mm proud; the keyholes are 60 mm apart on the plate's centre line — hang and let it drop so the shanks ride up into the slots.

Version history

1. v1 Oct 6, 2026 first build (SolidWorks 2026): 5 mm plate, holster with cable slot, four Ø44 seat bosses with the X6's bayonet (Ø32.8 bore + two lugs), two keyholes 60 mm apart
